155 ml Reservoir plate: 4 controls, 384 V bottom

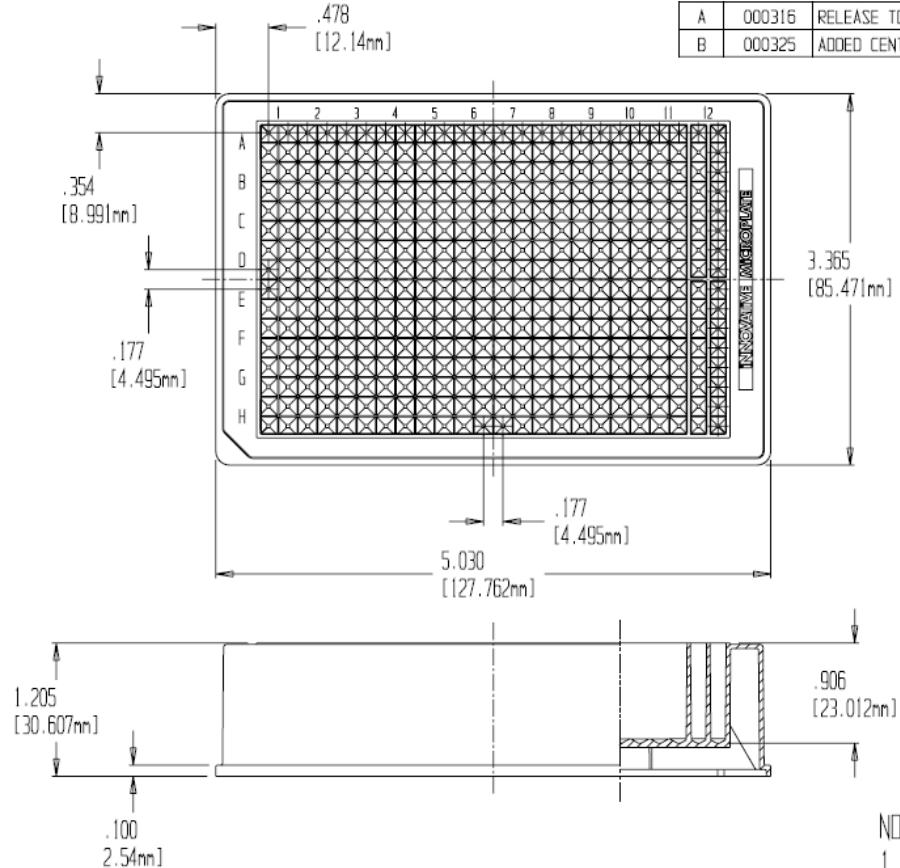

390109 drawing

155 ml Reservoir plate: 4 controls, 384 V bottom

SKU: 390109

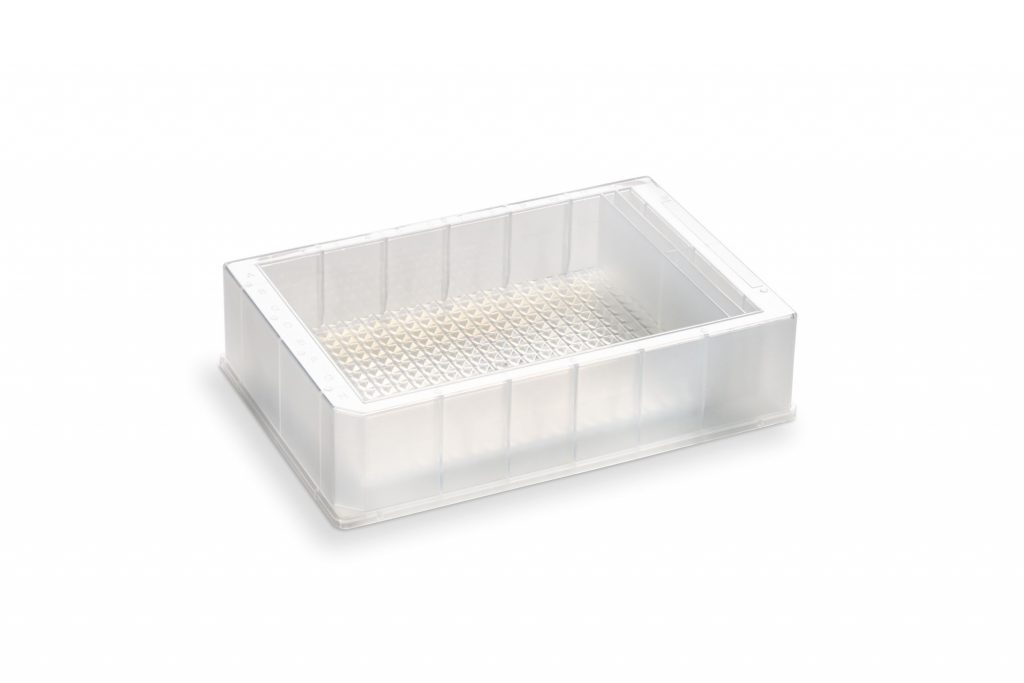

384 well Reservoir with 4 controls, half height

  • 384 pyramid bottom reservoir 4 control columns wells at one end
  • Low dead volume < 7 µl
  • Half height profile ~23 mm.
  • Total volume 155 ml
  • Robot friendly
  • Moulded in natural virgin polypropylene
  • Chemically and heat resistant
  • Autoclavable
  • Can be gamma irradiated
  • Made to ANSI/SLAS standard dimensions
Find a distributor Contact Us Request a Sample
  • Manufactured in a DNase/RNase-free cleanroom environment.
  • ANSI-SBS Footprint
  • Tested for low extractables
  • Tight specification levels
  • Manufactured under DIN ISO 9001 guidelines
  • Traceable to production through a defined LOT number system
  • Compatible with automated systems
  • Uniform external dimensions and tolerances
  • High chemical resistance
  • High temperature resistance (-196°C to + 121°C)
  • Single cavity with 384 pyramid bottom for very low dead volume
  • Robot friendly
  • Moulded in natural virgin polypropylene
  • Chemically and heat resistant
  • Autoclavable
  • Can be gamma irradiated
  • Made to ANSI/SLAS standard dimensions
Lidded

No
Sterile

No
Quantity

25
Plate Type

Reservoir
Well Shape

Rectangle
Bottom shape

V-bottom
Bottom

Solid V-bottom
Volume

>5.0 ml
Material

Polypropylene
Colour

Natural
Well Number

384
Application

Cancer Research, Drug Discovery, Other, Sample Preparation
Well Array

384 (4 controls)
Volume

155 ml
Related Products

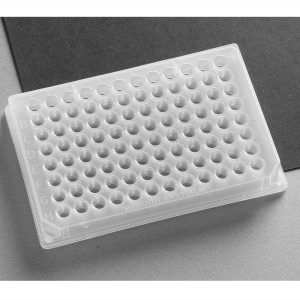

    Round 96 Well Plate Top View 219037
