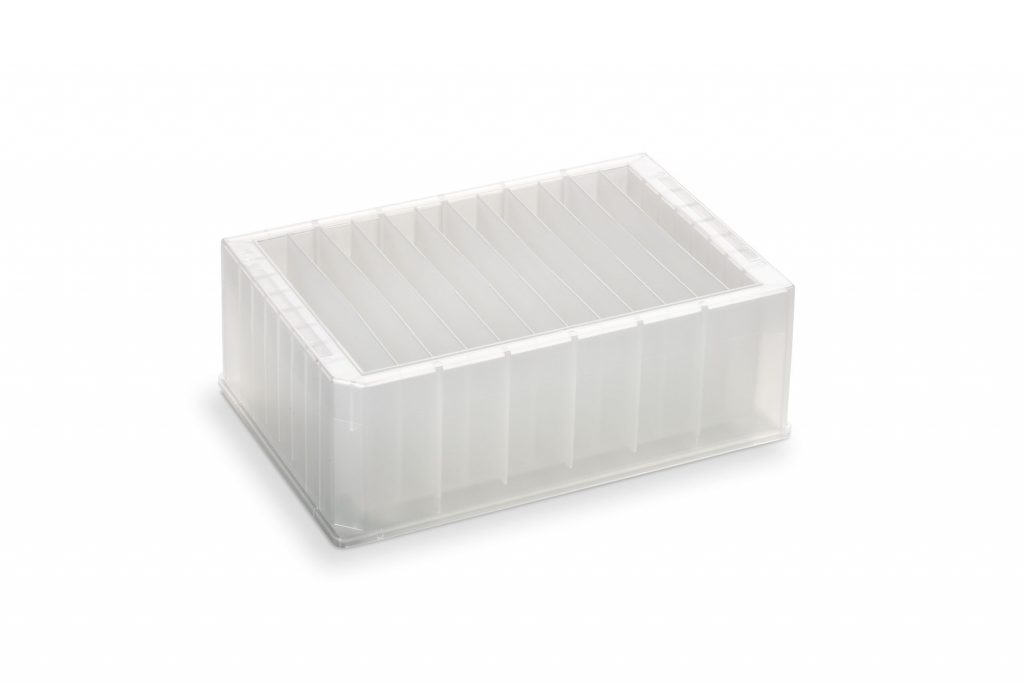

252 ml Reservoir plate: 12 compartment V bottom

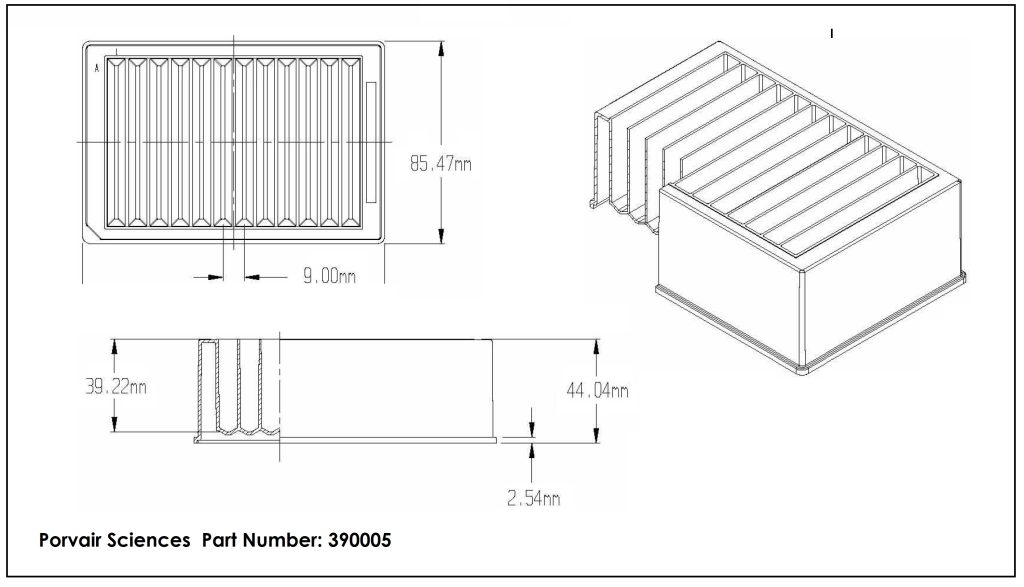

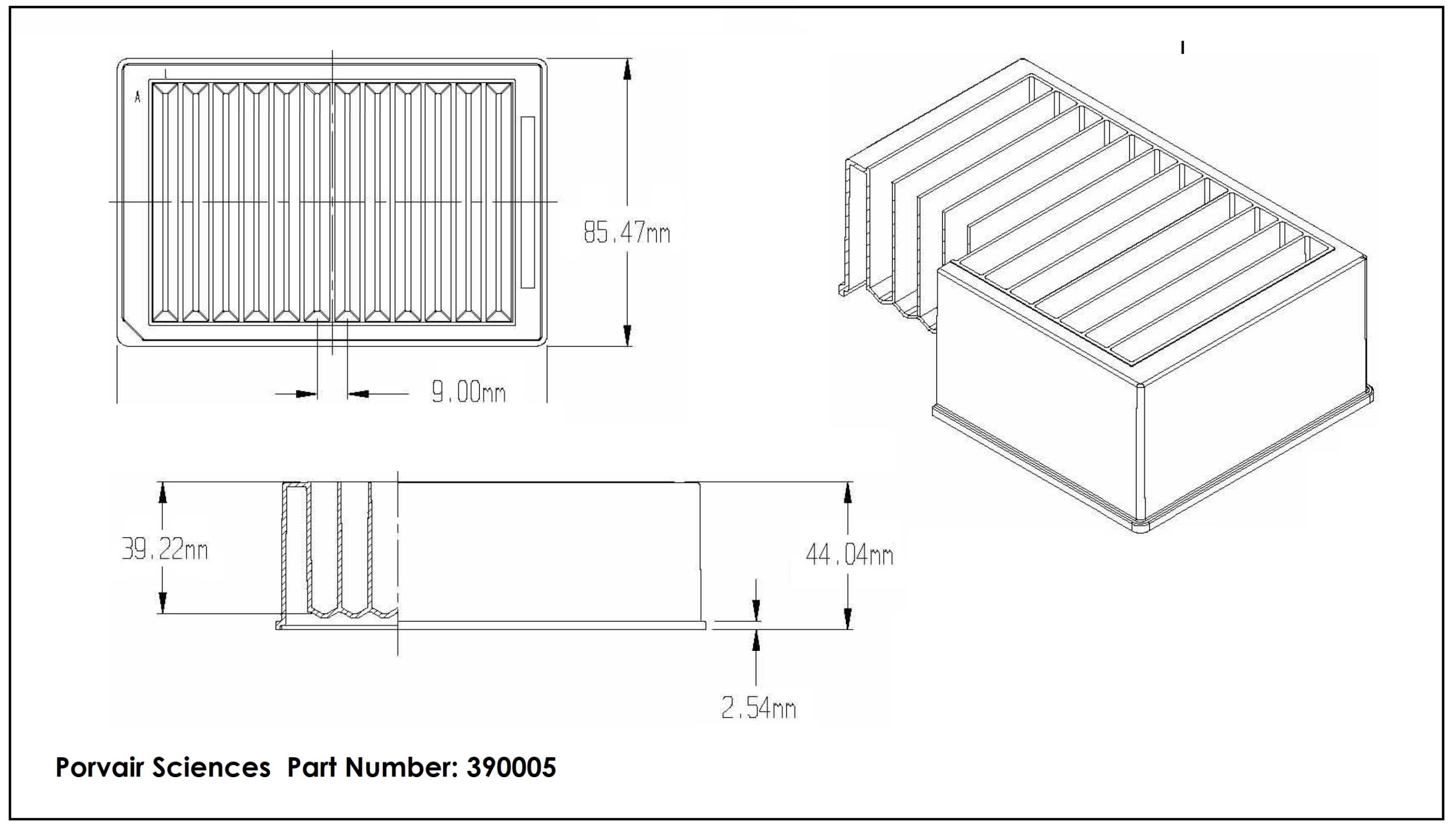

390005 schematics

252 ml Reservoir plate: 12 compartment V bottom

SKU: 390005

12 column, Reservoir, partitioned, pyramid bottom, natural polypropylene

  • 12 column reservoir plate. Volume 21 ml per column
  • Residual volume <54 µL per column
  • Robot friendly
  • Moulded in natural virgin polypropylene
  • Chemically and heat resistant
  • Autoclavable
  • Can be gamma irradiated
  • Made to ANSI/SLAS standard dimensions
Find a distributor Contact Us Request a Sample
  • Manufactured in a DNase/RNase-free cleanroom environment.
  • ANSI-SBS Footprint
  • Tested for low extractables
  • Tight specification levels
  • Manufactured under DIN ISO 9001 guidelines
  • Traceable to production through a defined LOT number system
  • Compatible with automated systems
  • Uniform external dimensions and tolerances
  • High chemical resistance
  • High temperature resistance (-196°C to + 121°C)
  • Single cavity with 384 pyramid bottom for very low dead volume
  • Robot friendly
  • Moulded in natural virgin polypropylene
  • Chemically and heat resistant
  • Autoclavable
  • Can be gamma irradiated
  • Made to ANSI/SLAS standard dimensions
Lidded

No
Sterile

No
Quantity

25
Plate Type

Reservoir
Well Shape

Rectangle
Bottom shape

V-bottom
Bottom

Solid V-bottom
Volume

>5.0 ml
Material

Polypropylene
Colour

Natural
Well Number

12
Application

Cancer Research, Drug Discovery, Other, Sample Preparation
Well Array

12 columns
Volume

252 ml
