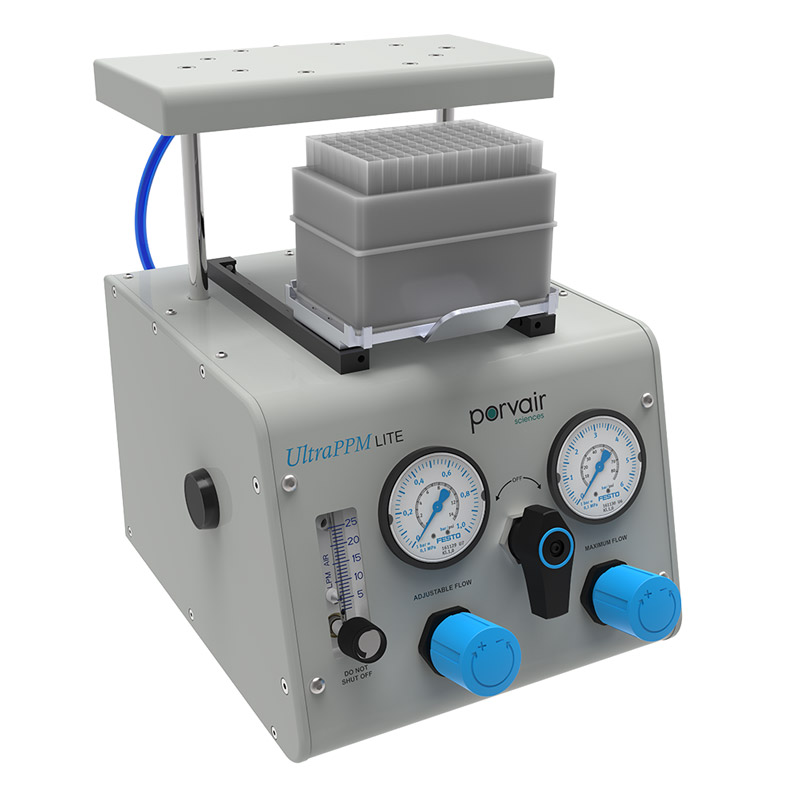

UltraPPM LITE Positive Pressure Manifold

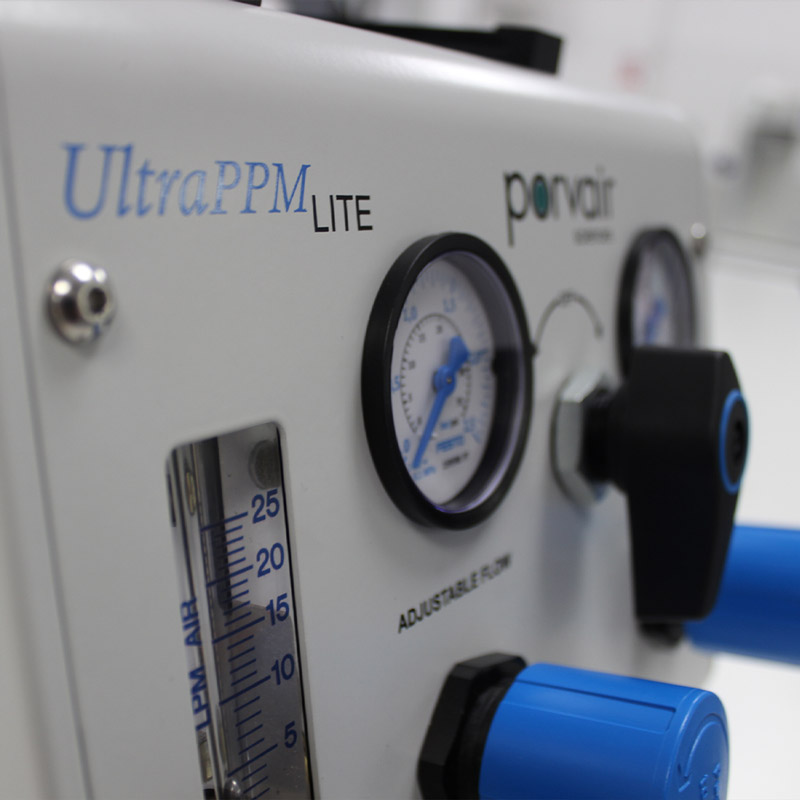

UltraPPM LITE Positive Pressure Manifold Close Up

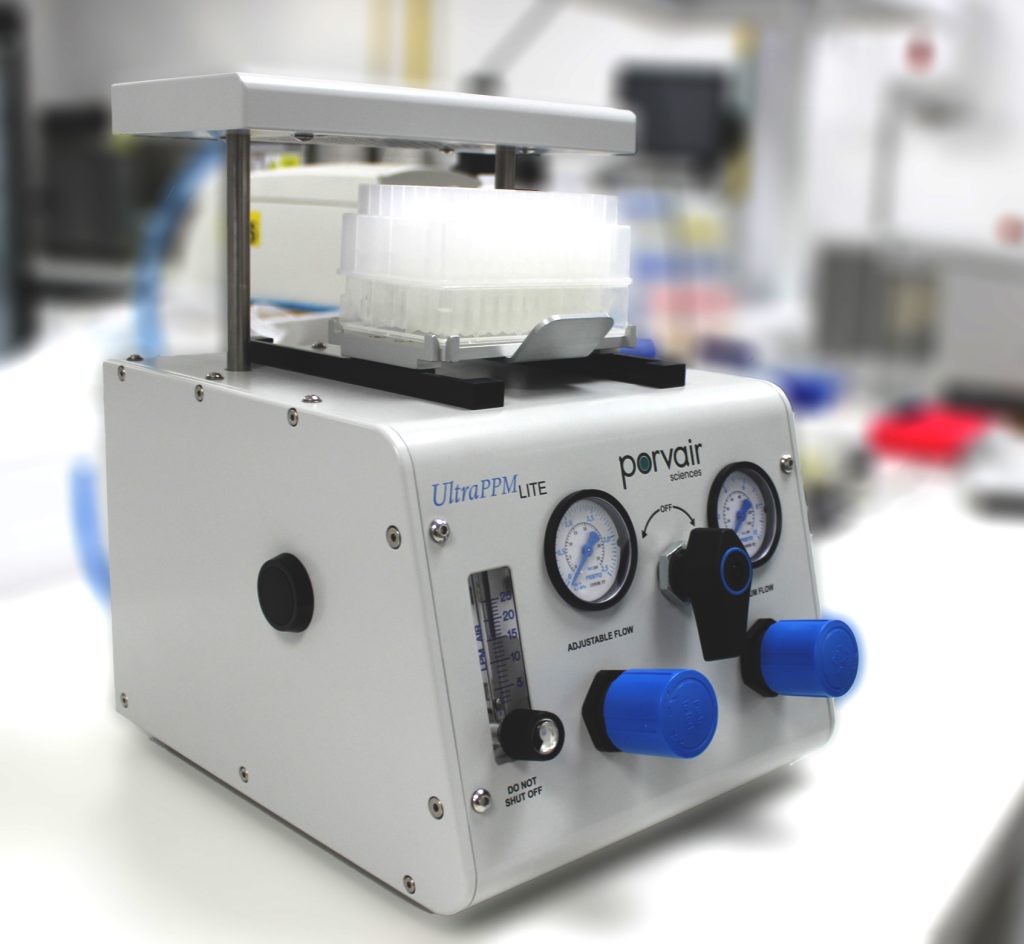

UltraPPM LITE Positive Pressure Manifold in a Lab
UltraPPM LITE Technical schematic showing dimensions

UltraPPM LITE

SKU: 250-10083

The Precise Positive Pressure Manifold

Features

  • Dual range controls for flow and pressure
  • Precise and uniform delivery of air flow from manifold head
  • Interchangeable heads for 24, 48, 96-well processing
  • Open design for real-time visual confirmation of sample flow through
  • 2 button operation feature for safety and prevention of accidental processing

For more information, please see our UltraPPM LITE brochure



Find a distributor Contact Us Request a Sample

The Precise Positive Pressure Manifold

The UltraPPM LITE is the latest in cutting-edge manifold design, instilling confidence in sample processing for chromatography workflows. This positive pressure manifold maintains a uniform pressure across all filter wells, guaranteeing a seamless flow of samples for maximum analyte recovery. Offering the flexibility to fine-tune settings, the UltraPPM LITE puts you in control, enabling you to reliably process your samples effortlessly and proceed to downstream processes with full confidence.

Why Choose The UltraPPM LITE?

  • Designed and precision engineered to effortlessly process your samples from start to finish
  • Perfect for vacuum manifold users looking to increase throughput with ease, consistency and control
  • It processes sensitive and challenging samples e.g. volatile, moisture-sensitive, viscous
  • Well-to-well uniformity, plate-to-plate reproducibility during sample preparation methods including SPE

Applications: Microplate-based filtration. Packed bed and composite-based SPE, SLE, PLR, and Protein Precipitation.

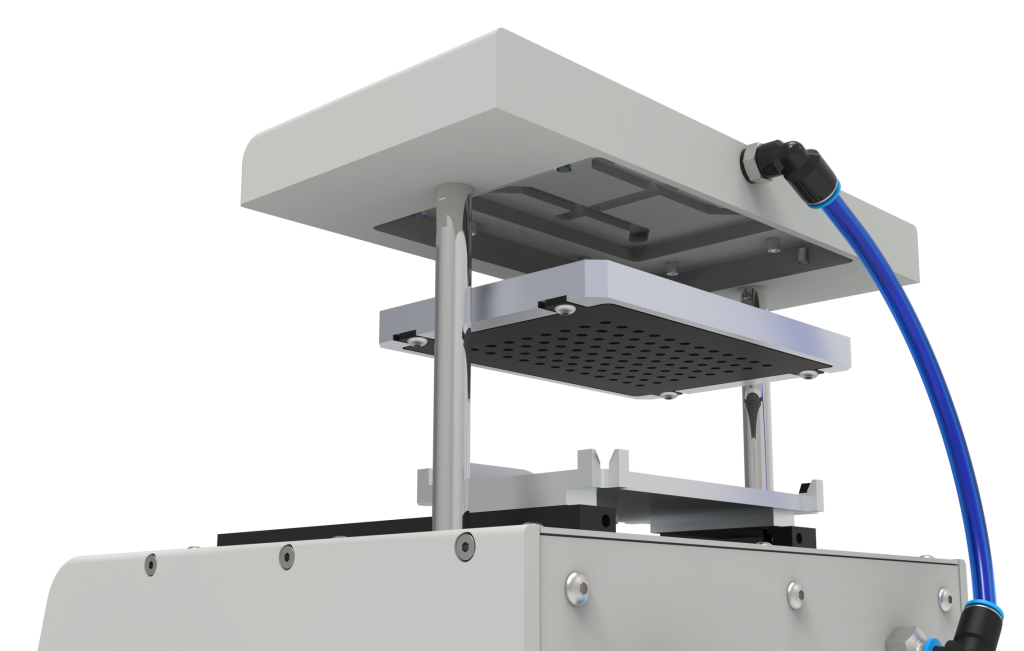

Did you know that you can quickly and easily adapt the UltraPPM LITE to different plate well formats? We have a range of interchangeable heads for ANSI/SBS standards ready to order with your instrument.

Interchangeable Head Product Numbers:

  • 24-well head: 150-10083-004
  • 48-well head: 150-10083-003
  • 96-well head: 150-10083-002
Instrument Type

Manifolds
Qty/Pack

1
